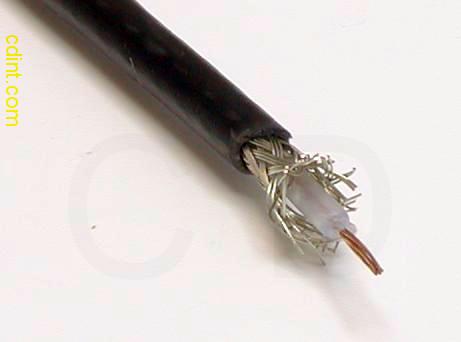

Bulk Cable, RG174, 50 foot
[CB-174-50]
$19.79

CB-174-50 is a 50 foot (15.24 meter) roll of RG174 50 ohm stranded core cable. 50 ohm cable, connectors, and adapters are commonly used in wifi (802.11 wireless LAN) antennas, ham tranceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

RG174 Specifications

Impedance50 ohms
Inner Conductor Diameter0.48 mm
Dielectric Diameter1.52 mm
Shield Diameter2.23 mm
Capacitance100.0 pF/meter (30.5 pF/foot)
Minimum Operating Temperature-40 C (-40.0 F)
Maximum Operating Temperature75 C (167.0 F)
Jacket Diameter2.79 mm
Jacket MaterialPVC
Velocity Ratio70%
Corestranded

This product was added to our catalog on Thursday 25 January, 2007.
