Bulk Coaxial Cable, RG316 double shielded, 500 foot, 50 ohm
[CB-316DS-500]
$1,360.94
Available for order

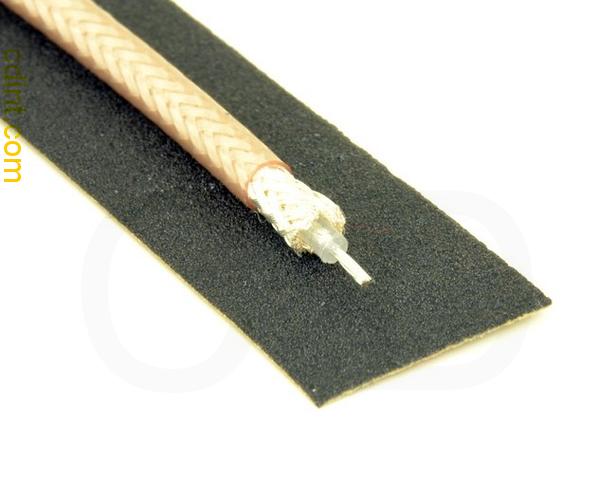

CB-316DS-500 is a 500 foot (152.44 meter) roll of RG316 double shielded 50 ohm stranded core cable. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

RG316 double shielded Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance50 ohms
Inner Conductor Diameter0.45 mm
Dielectric Diameter1.56 mm
Shield Diameter2.48 mm
Capacitance96.4 pF/meter (29.4 pF/foot)
Minimum Operating Temperature-55 C (-67.0 F)
Maximum Operating Temperature200 C (392.0 F)
Jacket Diameter2.93 mm
Jacket MaterialFEP
Corestranded
RelatedRG-316

This product was added to our catalog on Tuesday 14 July, 2015.
