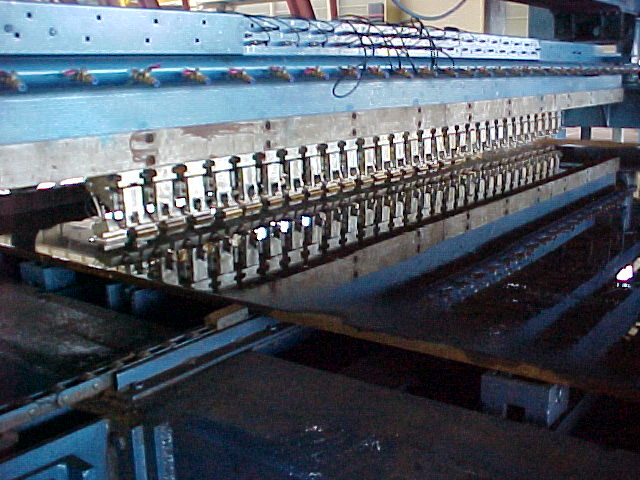

Multi-channel Ultrasonic Plate Inspection and Analysis System (CDU-P201)


Click on the picture to get a larger view

Features and Technical Data

  • Plate thickness from 0.2" to 4.0" (5mm - 100mm)
  • 16 to 48 channels
  • Inspection technique: contact inspection with water coupling, using transducer bubblers or immersion longitudinal wave (focus or unfocus)
  • Transducers: dual element, delay line or immersion paintbrush transducers.
  • Transducer frequencies: 5MHz-10MHz
  • Transducer element sizes: 1.0"x0.25" - 2.0"x0.25" (25x6mm - 50x6mm)
  • Continuous couplant
  • Automatic Distance Amplitude Correction (DAC)
  • Transducers are position-encoded for feedback to data acquisition system for proper imaging of the collected data
  • Flexible evaluation method by paint marking, product sorting, real-time of screen graphic display of results, and printer recording
  • Characterisic of the transducers can be certified by FFT per ASTM E 1065 standard
  • This system meets the requirements of various standards
