Coaxial Cable, BNC to 10-32 (Microdot compatible), RG174, 6 foot, 50 ohm
[BM-174-6]
Other lengths for this cable
Other connector and cable combinations
$25.47
Available for order

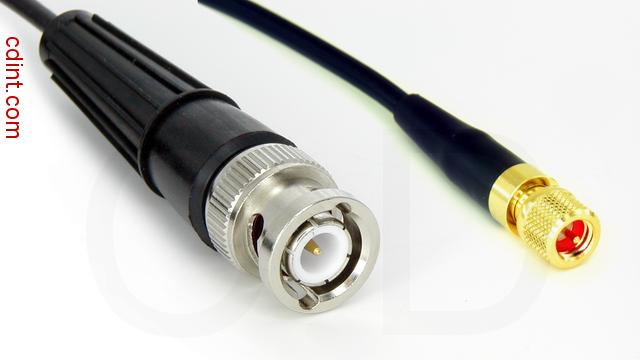

BM-174-6 is a RG174 6 foot 50 ohm (1.83 meter) coax cable assembly with a BNC connector on one end and a 10-32 (Microdot compatible) connector on the other end.

About M-Series Connectors

Click to enlarge
  • There are multiple sizes of connectors which practitioners tend to call "Microdot". The most common size uses 10-32 threads, but there are also 5-44 and 1/4-32 variants, as shown in this image.
  • This style of connector was pioneered by Malco in the late 1950's and early 1960's. Malco was later bought by Microdot, which was later bought by Tyco. Because of this history, users in the industries that use this connector style still call this a "Microdot connector", or even "Malco Connector", even though there are now multiple manufacturers making compatible connectors. "Microdot" is a trademark of Tyco.
  • The connectors we provide are compatibles made by various manufacturers. They are often improved designs, mechanically more durable than the original Malco connector.
  • 10-32 (M) Connector Details
    • These connectors have threads that are the same as those on a 10-32 (UNF) machine screw. They are commonly used in non-destructive testing (NDT) and aerospace, on transducers, accelerometers, strain gauges, and force and acoustic sensors, among other applications.
    • These connectors are often confused with 1/4-32 connectors; they look similar, varying only slightly in size. If in doubt, check your mating connector using a thread gauge or caliper: 1/4-32 threads have a minor diameter of approximately 5.4 mm, while 10-32 threads have a minor diameter of about 3.9 mm. See a thread chart for more details.

    About 50 ohm cable assemblies

    This cable assembly has a characteristic impedance of 50 ohms. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

    RG174 Specifications

    The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

    Impedance50 ohms
    Inner Conductor Diameter0.48 mm
    Dielectric Diameter1.52 mm
    Shield Diameter2.23 mm
    Capacitance100.0 pF/meter (30.5 pF/foot)
    Minimum Operating Temperature-40 C (-40.0 F)
    Maximum Operating Temperature75 C (167.0 F)
    Jacket Diameter2.79 mm
    Jacket MaterialPVC
    Velocity Ratio66%
    Corestranded
    RelatedRG-174 RG174A/U RG-174A/U

    We hi-pot test our cable assemblies for high-voltage breakdown between core and braid. See About Hi-Pot Testing for why this might matter to you, particularly for physics or NDT applications. Caution: We make no claims as to the safety of this product for high-voltage use. These voltages can kill. Do not handle or approach any cable or conductor carrying high voltage; this includes insulated cables, nearby metal parts, water, and other conductive materials. Engineering and design for safety in your application are your responsibility.

    Customization and Ordering

    • We make our own cable assemblies. If you need a connector type that you don't see here, or if you have custom requirements, feel free to contact us.
    • RoHS compliance available upon request.
    • low noise RG174 cable available -- see Cables/RG174 low noise.
    • If you need a quantity discount quote, please contact us. We're always happy to work with distributors.

    All prices are subject to change without notice.

    Actual product color, plating, and other details may differ from photo images depending on upstream component availability.

    All images and text on this web site are copyright CD International Technology; all rights reserved.

    All trademarks and registered trademarks are the property of their respective owners. LEMO is a registered trademark of LEMO USA. Microdot is a trademark of Tyco Electronics.

    This product was added to our catalog on Tuesday 03 October, 2006.
