CB-178-100: Bulk Coaxial Cable, RG178, 100 foot, 50 ohm

Bulk Coaxial Cable, RG178, 100 foot, 50 ohm [CB-178-100]		$301.70 Available for order

Bulk Coaxial Cable, RG178, 100 foot, 50 ohm

Click to enlarge

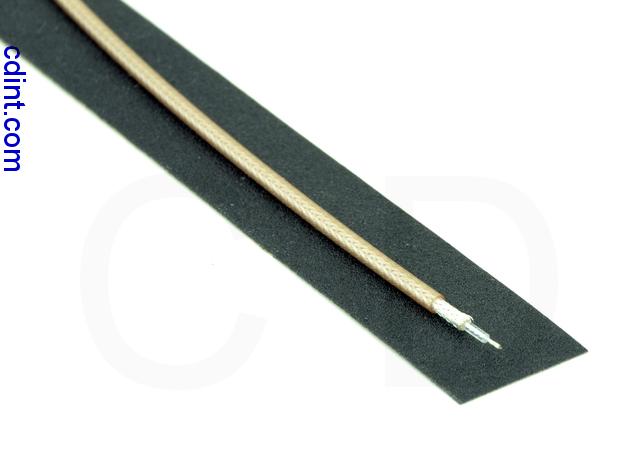

CB-178-100 is a 100 foot (30.49 meter) roll of RG178 50 ohm stranded core cable. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

RG178 Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance 50 ohms

Minimum Operating Temperature -55 C (-67.0 F)

Maximum Operating Temperature 200 C (392.0 F)

Jacket Diameter 1.8 mm

Jacket Material FEP

Core stranded

Related RG-178

This product was added to our catalog on Thursday 15 May, 2008.
