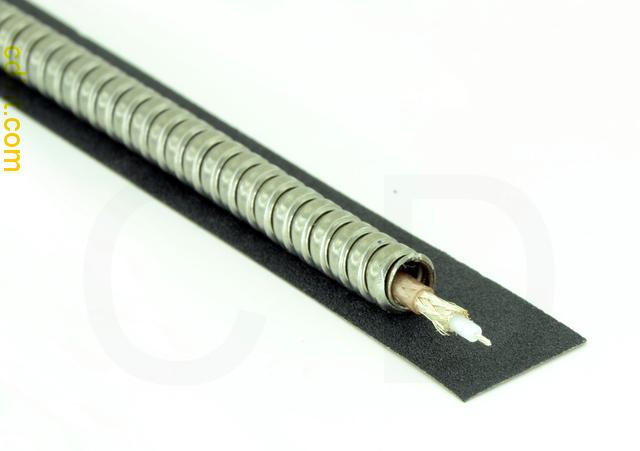

Bulk Coaxial Cable, RG316 armored, 10 foot, 50 ohm
[CB-316A-10]
$35.77
Available for order

CB-316A-10 is a 10 foot (3.05 meter) roll of RG316 armored 50 ohm stranded core cable. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

RG316 armored Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance50 ohms
Capacitance101.7 pF/meter (31.0 pF/foot)
Minimum Operating Temperature-55 C (-67.0 F)
Maximum Operating Temperature200 C (392.0 F)
Jacket Diameter6.35 mm
Jacket Materialstainless steel
Corestranded
RelatedRG-316

This product was added to our catalog on Sunday 20 March, 2016.
