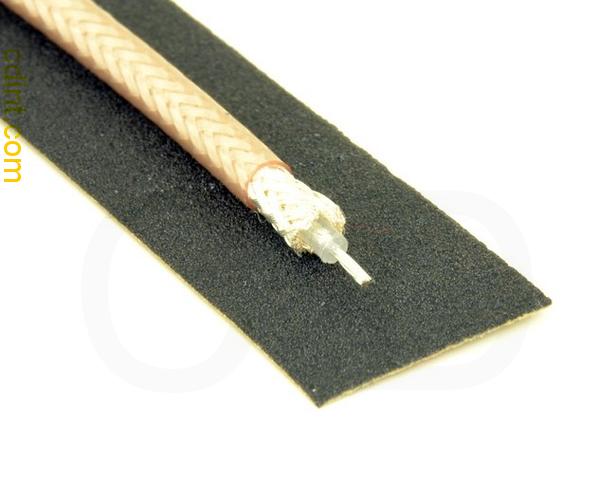

CB-316DS-10 is a 10 foot (3.05 meter) roll of RG316 double shielded
50 ohm stranded core cable.
50 ohm coax cable, connectors, and adapters are commonly used in GPS
and wifi (802.11 wireless LAN) antennas, ham transceivers, and other
radio frequency (RF) analog and digital signaling, microwave, radar,
hi-fidelity professional audio, non-destructive testing (NDT), oil and
petroleum production, ultrasonic transducers, accelerometers, strain
gauges, and some professional video applications.
RG316 double shielded Specifications
The following are nominal values; if you have exact requirements that
need to be met for a given application, please contact us.
|Inner Conductor Diameter||0.45 mm|
|Dielectric Diameter||1.56 mm|
|Shield Diameter||2.48 mm|
|Capacitance||96.4 pF/meter (29.4 pF/foot)|
|Minimum Operating Temperature||-55 C (-67.0 F)|
|Maximum Operating Temperature||200 C (392.0 F)|
|Jacket Diameter||2.93 mm|
