JSR Pulser/Receivers


Download Product Specifications
Features
  • 35 MHz receiver BW (50 MHz and 60 MHz options available)
  • Noise level of 49 µVp-p input referred @ 35 MHz BW
  • User adjustable pulse amplitude up to 475V (900V pulse amplitude option available)
  • 16 damping values
  • Selectable high and low pass filter settings (6 each)
  • Selectable pulser energy and impedance
  • 80 dB receiver gain range
  • Windows-based control, Windows 98/95 and NT .dll's and LabVIEW .vi drivers provided

Download Product Specifications
Features

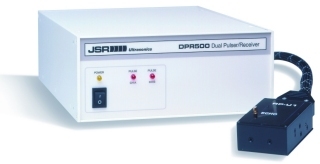

  • Configurable as a dual channel instrument with two independent receiver modules, or as a single channel instrument
  • Receiver bandwidth options up to 500 MHz
  • PC control of all pulser/receiver functions
  • Utilizes interchangeable remote pulsers
  • 72/80 dB gain low noise receivers
  • Operates in both pulse-echo and through transmission mode
  • Windows instrument control software, Windows NT and 98/95 .dll's, and LabVIEW .vi and c language drivers provided
