Bulk Coaxial Cable, RG174, 100 foot, 50 ohm
[CB-174-100]
$41.66
Available for order

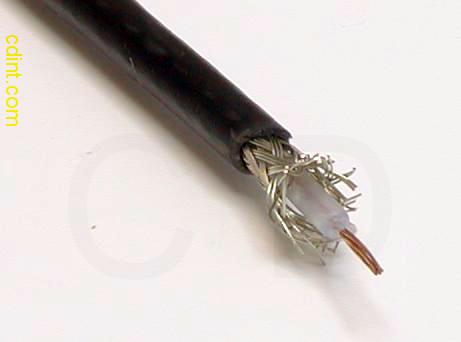

CB-174-100 is a 100 foot (30.49 meter) roll of RG174 50 ohm stranded core cable. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

RG174 Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance50 ohms
Inner Conductor Diameter0.48 mm
Dielectric Diameter1.52 mm
Shield Diameter2.23 mm
Capacitance100.0 pF/meter (30.5 pF/foot)
Minimum Operating Temperature-40 C (-40.0 F)
Maximum Operating Temperature75 C (167.0 F)
Jacket Diameter2.79 mm
Jacket MaterialPVC
Velocity Ratio66%
Corestranded
RelatedRG-174 RG174A/U RG-174A/U

This product was added to our catalog on Thursday 25 January, 2007.
