Bulk Coaxial Cable, RG174 low noise, 100 foot, 50 ohm
[CB-174LN-100]
$201.69
Available for order

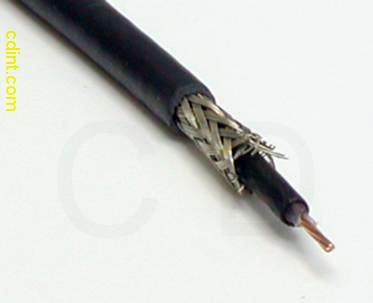

CB-174LN-100 is a 100 foot (30.49 meter) roll of RG174 low noise 50 ohm stranded core cable. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

About Low Noise Cable

This is a "low noise" cable, with a carbon-impregnated conductive PVC layer added around the polyethylene dielectric; this layer helps to increase shielding, dissipate static charge, and reduce mechanically-generated electrical noise as the cable is flexed. This extra protection is useful for long cable runs, low-voltage signals, high-vibration environments, in applications including aerospace, automotive, NDT, strain gauges and accelerometers, and extremely high fidelity professional audio production.

Low noise cable is generally not recommended for RF use. In our own testing, we see characteristics which differ from ordinary cable, including phase delay and impedance variations with frequency. In the field, we've seen mixed results in the GHz range; low noise cables seem to provide the best results at signal frequencies in the low MHz or lower. Ultrasonic NDT, for example, uses low-noise cable with signals as high as 100 MHz, but in transient pulse trains, where phase delay is less critical. The results you get will depend on the application, and as always you will want to do your own testing before ordering large quantities.

RG174 low noise Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance50 ohms
Inner Conductor Diameter0.48 mm
Dielectric Diameter1.4 mm
Capacitance124.6 pF/meter (38.0 pF/foot)
Minimum Operating Temperature-40 C (-40.0 F)
Maximum Operating Temperature60 C (140.0 F)
Jacket Diameter2.57 mm
Jacket MaterialPVC
Velocity Ratio62%
Corestranded
RelatedRG-174 RG174A/U RG-174A/U

This product was added to our catalog on Thursday 25 January, 2007.
