Coaxial Cable, BNC to MCX plug (male contact), RG196 low noise, 10 foot, 50 ohm
[BMC-196LN-10]
Other lengths for this cable
Other connector and cable combinations		 $56.07
Available for order

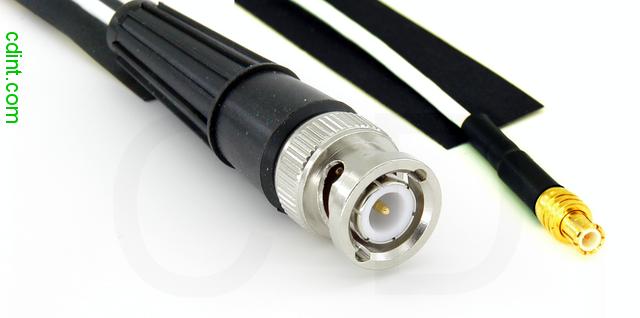

BMC-196LN-10 is a RG196 low noise 10 foot 50 ohm (3.05 meter) coax cable assembly with a BNC connector on one end and a MCX plug (male contact) connector on the other end.

About 50 ohm cable assemblies

This cable assembly has a characteristic impedance of 50 ohms. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

About Low Noise Cable

This is a "low noise" cable, with a carbon-impregnated conductive PTFE layer added around the PTFE dielectric; this layer helps to increase shielding, dissipate static charge, and reduce mechanically-generated electrical noise as the cable is flexed. This extra protection is useful for long cable runs, low-voltage signals, high-vibration environments, in applications including aerospace, automotive, NDT, strain gauges and accelerometers, and extremely high fidelity professional audio production.

Low noise cable is generally not recommended for RF use. In our own testing, we see characteristics which differ from ordinary cable, including phase delay and impedance variations with frequency. In the field, we've seen mixed results in the GHz range; low noise cables seem to provide the best results at signal frequencies in the low MHz or lower. Ultrasonic NDT, for example, uses low-noise cable with signals as high as 100 MHz, but in transient pulse trains, where phase delay is less critical. The results you get will depend on the application, and as always you will want to do your own testing before ordering large quantities.

RG196 low noise Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance50 ohms
Capacitance107.3 pF/meter (32.7 pF/foot)
Minimum Operating Temperature-55 C (-67.0 F)
Maximum Operating Temperature250 C (482.0 F)
Jacket Diameter1.9 mm
Jacket MaterialPTFE
Corestranded
RelatedRG-196

We hi-pot test our cable assemblies for high-voltage breakdown between core and braid. See About Hi-Pot Testing for why this might matter to you, particularly for physics or NDT applications. Caution: We make no claims as to the safety of this product for high-voltage use. These voltages can kill. Do not handle or approach any cable or conductor carrying high voltage; this includes insulated cables, nearby metal parts, water, and other conductive materials. Engineering and design for safety in your application are your responsibility.

Customization and Ordering

  • We make our own cable assemblies. If you need a connector type that you don't see here, or if you have custom requirements, feel free to contact us.
  • RoHS compliance available upon request.
  • If you need a quantity discount quote, please contact us. We're always happy to work with distributors.

All prices are subject to change without notice.

Actual product color, plating, and other details may differ from photo images depending on upstream component availability.
